SC4702

SC4702

Description

    Fully Integrated, Hall Effect-Based Linear Current Sensor, which can detect DC, or AC current.


Features

•  Single power supply: 4.5V ~ 5.5V

•  Isolation voltage 2400V

•  Current detection range (unidirectional, or bidirectional):

     . ±20A,±30A

     . +20A, +30A

•  Signal bandwidth: 120kHz

•  Fast output response time: <2.5us

•  Current detection accuracy: ±1%

•  Operating temperature: -40 to 125 °C

•  Package: SOP-8

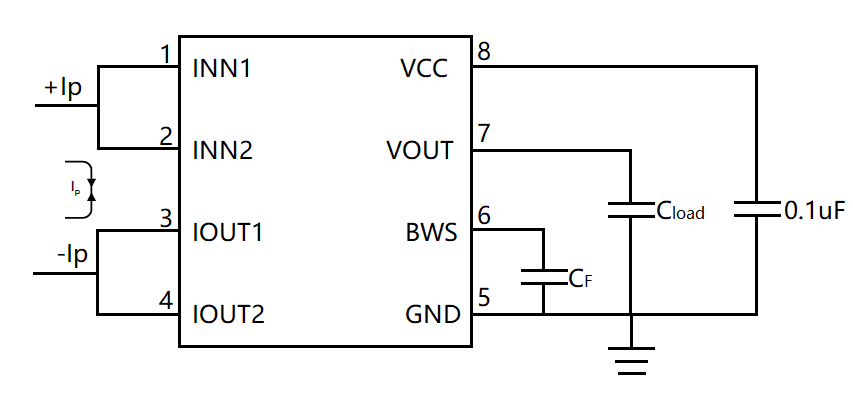

Typical Application Diagram

Applications

•  Servo/Inverter

•  Fast charging source

•  UPS

•  Inverter

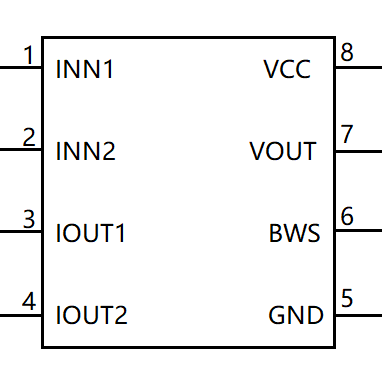

Pinout
