SC1300

Description

     The SC1300 is a high efficiency synchronous step-down switching converter. The device operates from an input voltage from 4.5V up to 18V. The main switch and synchronous switch are integrated in the device with very low RDS_ON and capable of delivering up to 3A current.

Features

•  4.5V to 18V Input Volatge Range

•  0.8V Reference Voltage

•  3A Output Current

•  800KHz Switching Frequency

•  Internal Soft-Start

•  Pulse Frequency Mode at Light Load

•  Operating temperature: -40 to 125 °C

•  Package: SOT23-6,  SOT563

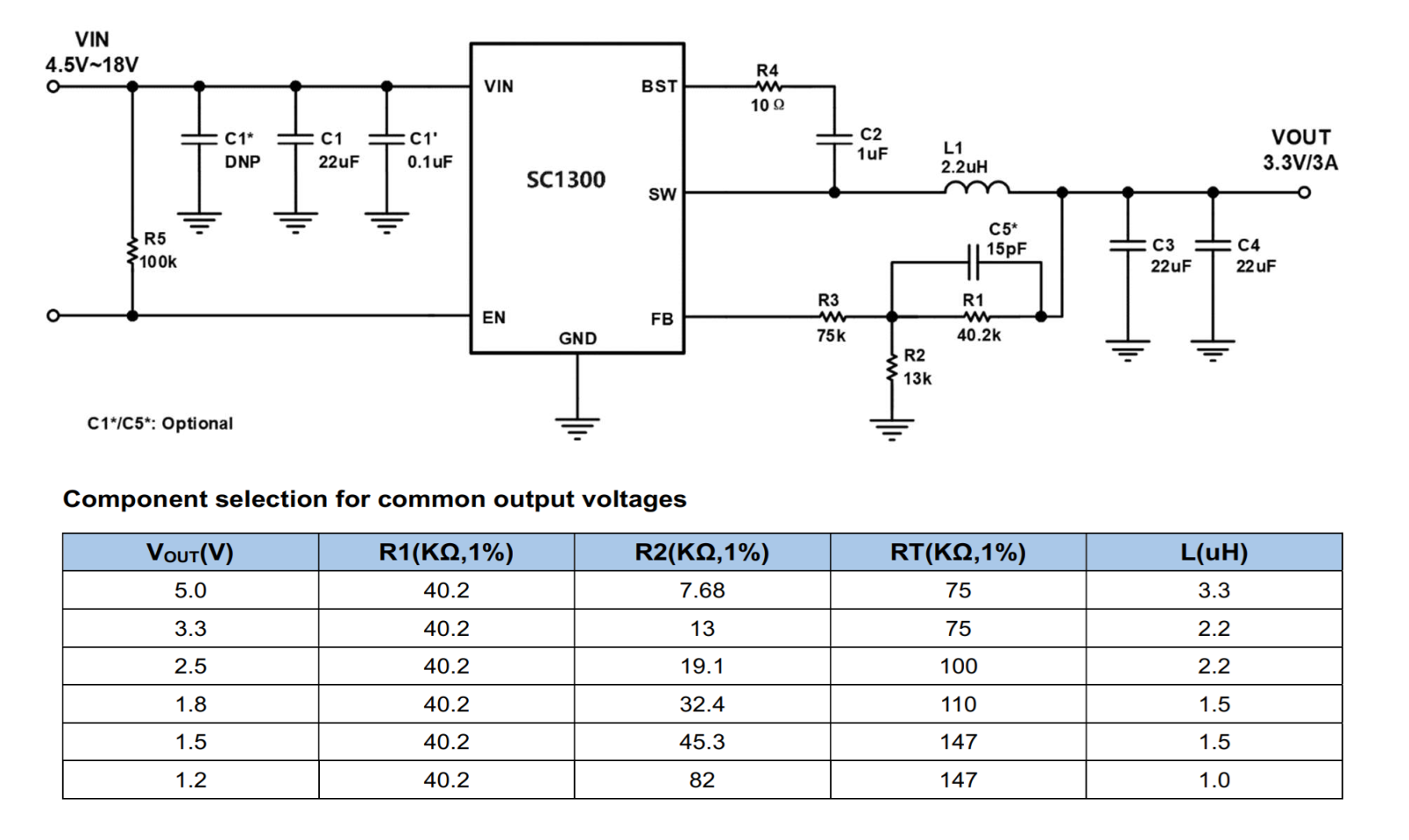

Typical Application Diagram


Applications

•  Security Cameras

•  Flat Panels and Monitors

•  Set Top Boxes and Media Players

•  General Purpose

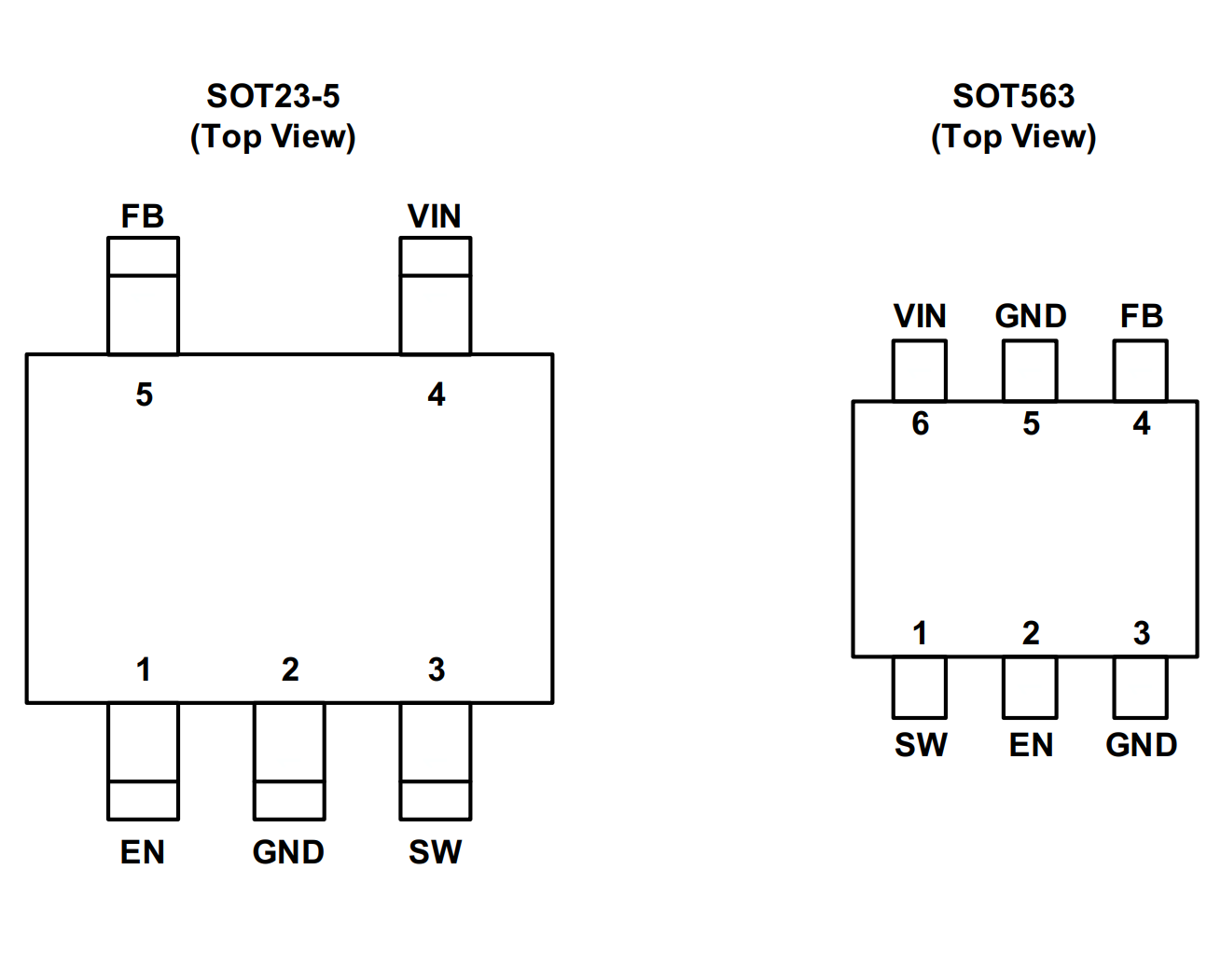

Pinout
