SC8835

Description

      Dual H-Bridge Motor Driverr,   Drives two DC Motors or one Stepper Motor,  Low MOSFET On-Resistance: HS + LS 305mΩ.

Features

•  0 to 11V VM Voltage Range

•  2 to 7V logic Voltage Range

•  PWM or PHASE/ENABLE Interface

•  Low-Power Sleep Mode With 95 nA Maximum Sleep Current

•  Protection Features

     .  VCC Undervoltage Lockout (UVLO)

     .  Overcurrent Protection (OCP)

     .  Thermal Shutdown (TSD)
•  Package ： DFN-12 (2mm × 3mm)

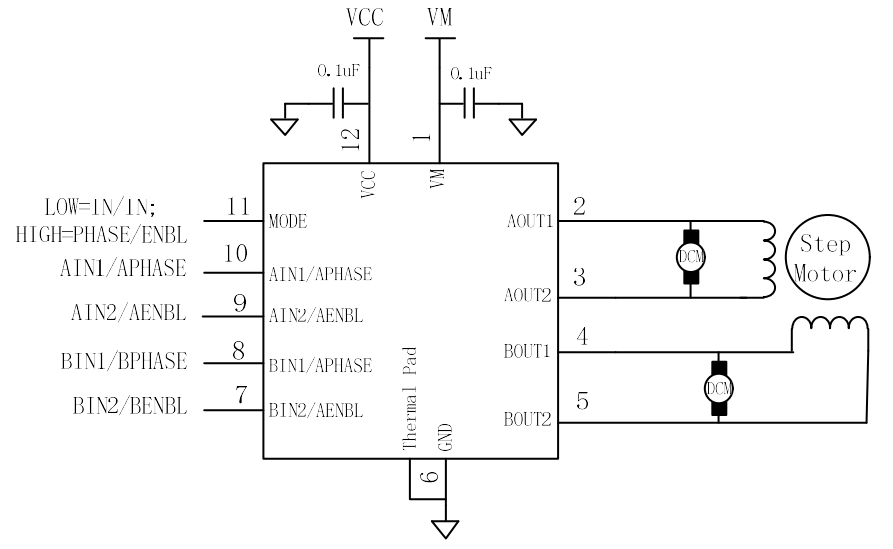

Typical Application Diagram


Applications

•  Cameras

•  Consumer Products

•  Toys

•   Robotics

•  Medical Devices

Pinout
