SC2010x

Description

      The SC2010x is a high PSRR low dropout linear regulator with 500mA driving current, which shows good power dissipation with <0.1uA shutdown current and 40uA quiescent current of  light load for portable devices.

Features

•  1.5V to 7V Input Volatge Range

•  Fixed 0.8V、1.0V、1.2V、1.5V、1.8V、2.5V、2.8V、3.0V、3.3V、3.6V and 5.0V output

•  Low Dropout Voltage：250mV@500mA@VOUT=3.3V

•  ±1.5% output voltage accuracy

•  <0.1uA shutdown current, 40uA quiescent current

•  High PSRR : 87dB@1KHz

•  Operating temperature: -40 to 125 °C

•  Package: SOT23-5,  DFN 1x1

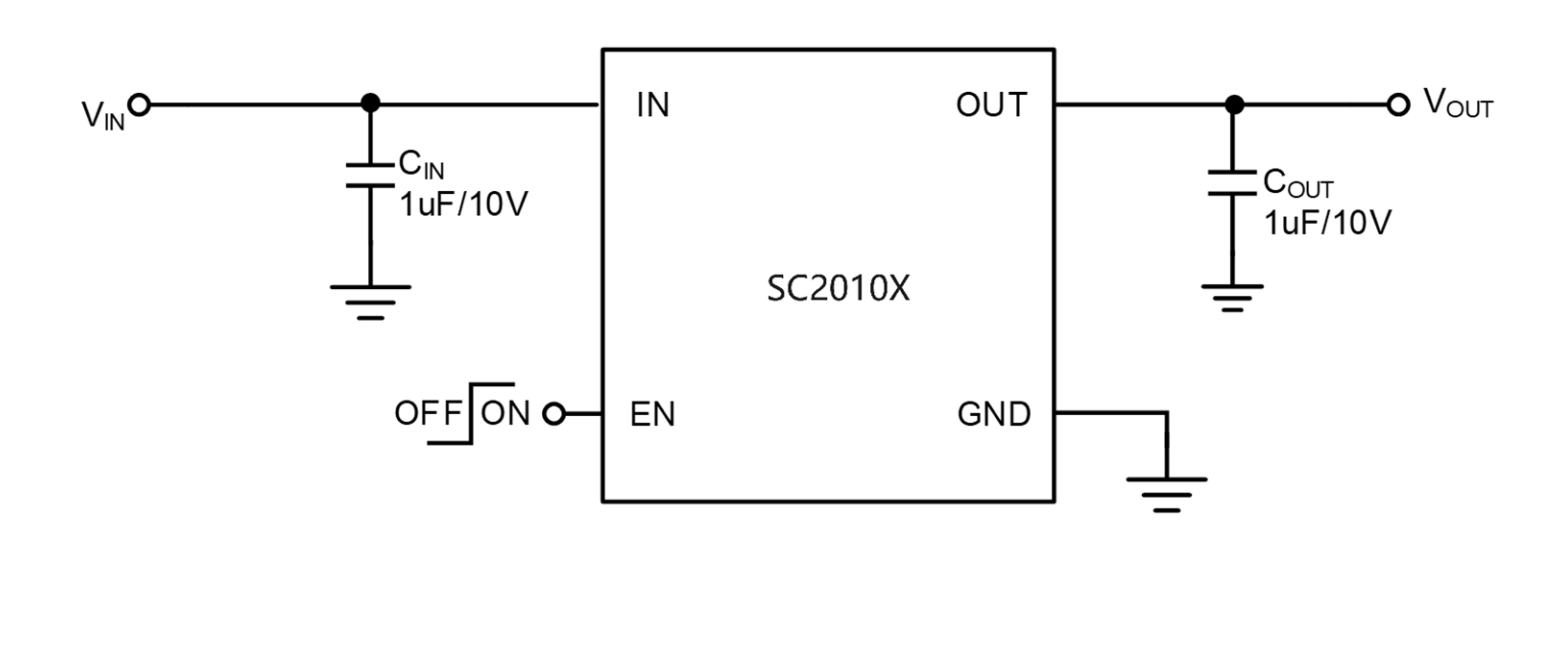

Typical Application Diagram


Applications

•  Battery-power equipment

•  Portable electric devices

•  Audio/Video equipment

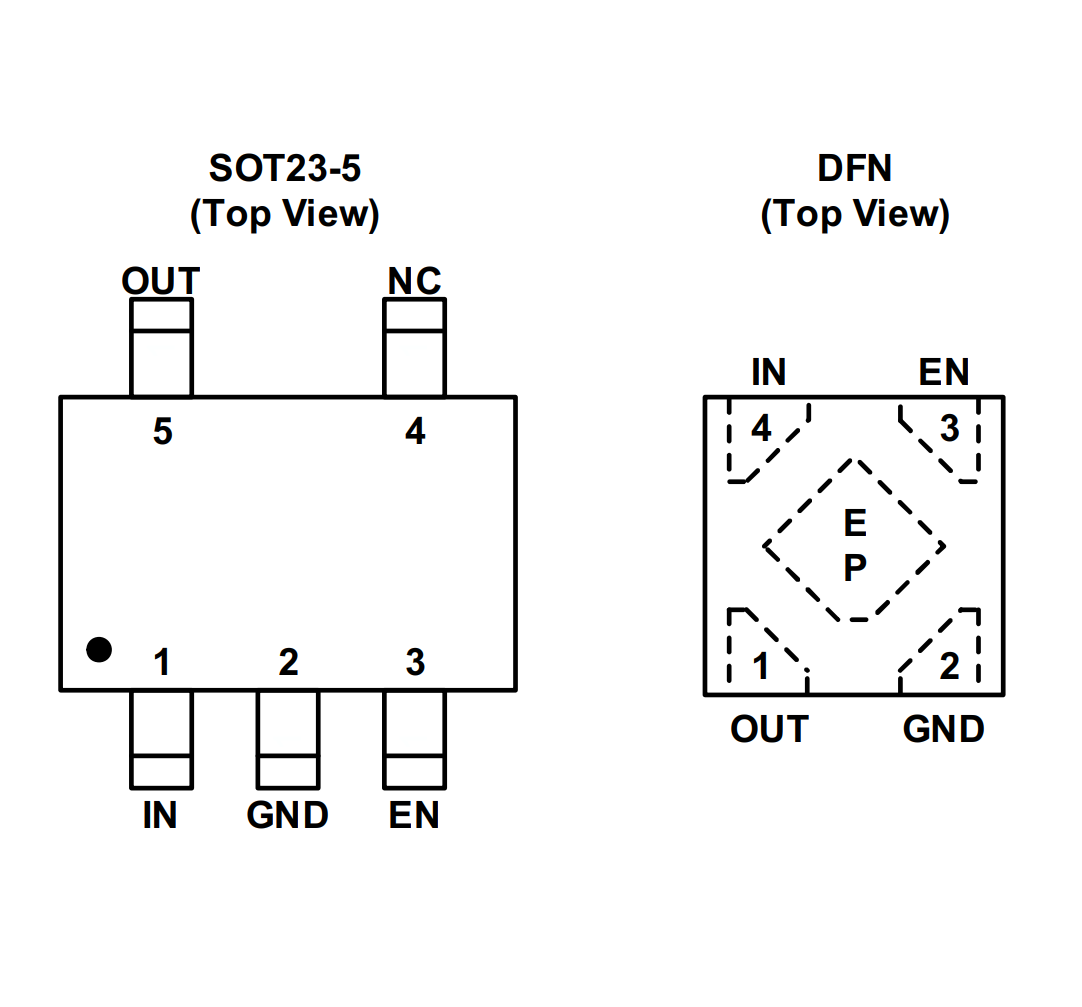

Pinout
