SC8442N

Description

    The SC8442N is a full HD dual-mode  video filter, with a clamp track comparator. Comparator DC coupling input, filter supports DC, or AC coupling input.

Features

Overall characteristics:

•  2.7 ~ 5.5V power supply

•  Low power consumption: 15mA/ 17mA (3.3V/ 5V)

•  Packaging: MSOP-8

Comparison characteristics:

•  30ns transmission latency (100mV OverDrive)

•  Rail to orbit, compatible with CMOS/TTL level

•  AC coupling input with 80mV Clamper

•  Low offset power supply: ± 3mV max

•  Low temperature flutter: 5uV/℃

•  Low power consumption: 251uA

Filter characteristics:

•  -3dB bandwidth 72MHz

•  6DB rail to rail loss gain gain

•  Can drive two output channels or 75 Euros load

•  AC input, with clamping, 230mv bias

•  Support DC or AC output

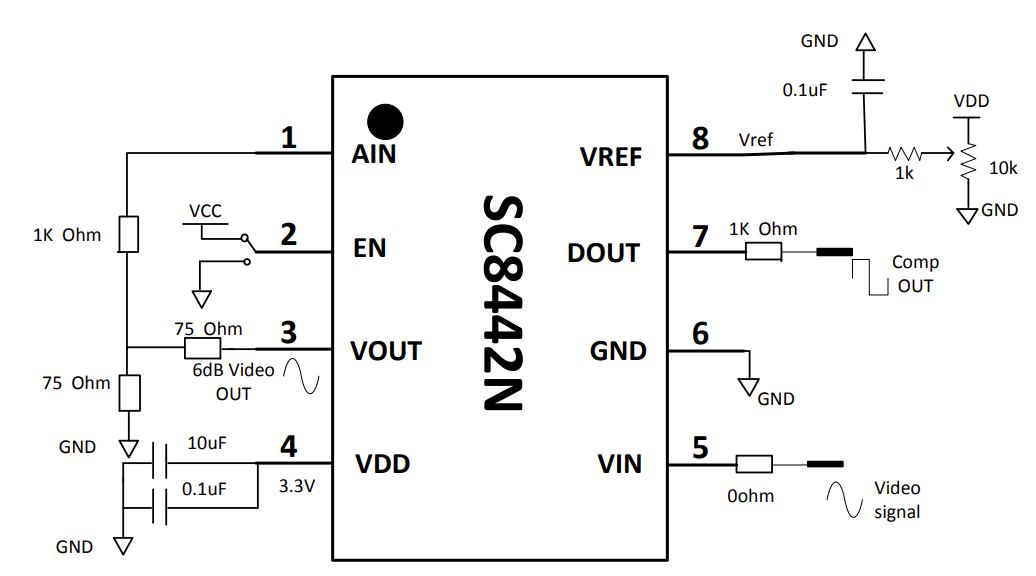

Typical Application Diagram


Applications

•  FHD  Camera

•  Set-top box

•  Car FHD Camera

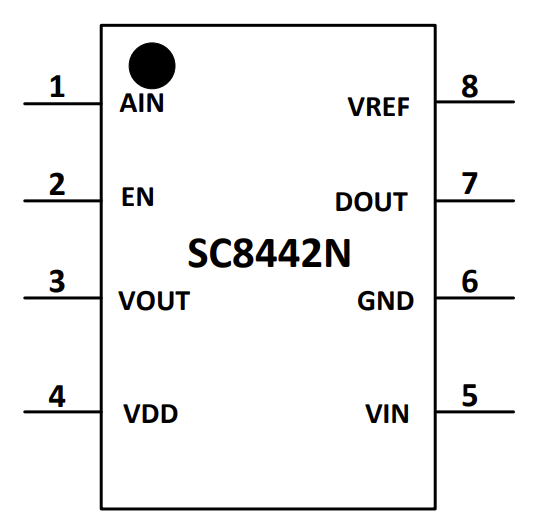

Pinout
