SC6619B

Description

    The SC6619B is a 6th order Butterworth HD video reconstruction filter. The -3dB bandwidth is 72MHz. This filter has 6dB gain in the passband and -25dB (fAtt=100MHz) out of band attenuation; -39dB (fAtt=144MHz).

Features

•  6th order Butterworth HD video reconstruction filter with -3dB bandwidth of 72MHz

•  6dB rail-to-rail output gain

•  Can drive 75 ohm loads

•  Supports AC input or DC coupled input

•  Supports DC or AC output

•  Supply voltage 3.3V or 5V

•  Power consumption 15mA @ 3.3V/17mA @ 5V

•  Package: SOT23-6, SC70-5

Typical Application Diagram


Applications

•  FHD TVI/AHD/CVI camera

•  Set-top box

•  Car FHD Camera

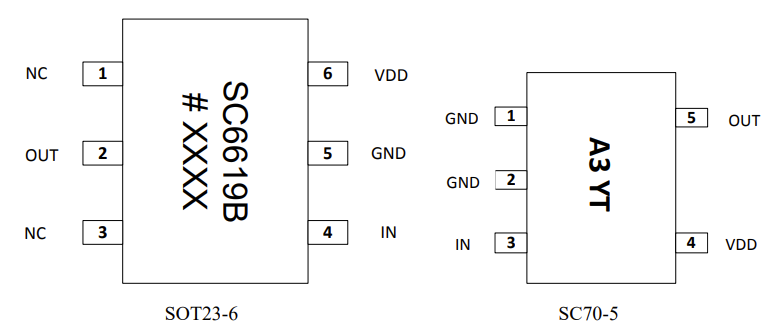

Pinout
