SC8904

Description

      Single channel  H-bridge brushed motor driver,   Drives a DC Motor or Other Loads,  Low MOSFET On-Resistance: HS + LS 800mΩ.

Features

•  1.6V to 6.5V Operating Voltage Range

•  Standard PWM Interface (IN1/IN2)

•  Low-Power Sleep Mode With 1uA Maximum Sleep Current

•  Protection Features

     .  VCC Undervoltage Lockout (UVLO)

     .  Overcurrent Protection (OCP)

     .  Thermal Shutdown (TSD)
•  Package ： SOT23-6

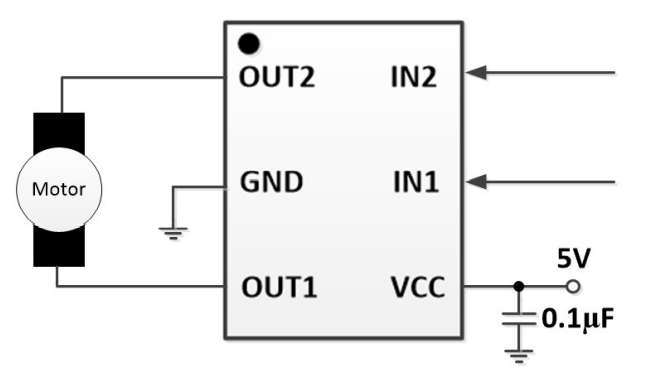

Typical Application Diagram


Applications

•  Cameras

•  Consumer Products

•  Toys

•   Robotics

•  Medical Devices

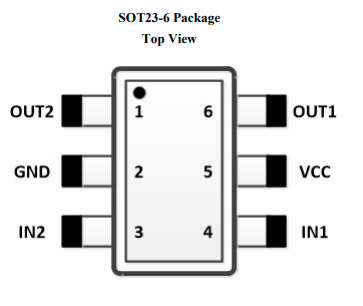

Pinout
